SPECIFICATIONS

Why Choose Dual Stage Over Single Stage Regulator?

As the compressed CO2 gas inside the cylinder is running low (pressure is low), a single stage regulator has a much higher risk of letting off huge volume of CO2 gas. This is called end of tank dump, the CO2 disaster that can kill all your fish in the aquarium.

A regulator with two-stage regulates the pressure better and maintains stable CO2 output. This eliminates the sudden CO2 dump (can happen due to low pressure) called end-of-tank-dump (EoTD) catastrophe.

The Pro Series dual stage CO2 regulator is your best choice for injecting CO2 to your aquarium

• Pro Series has dual stage structure and safety built-in plus adjustable output pressure

• Expandable manifold blocks with integrated high precision needle valves and bubble counters

• DC 12V solenoid valve is high Performance and uses less power

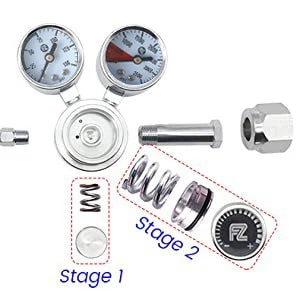

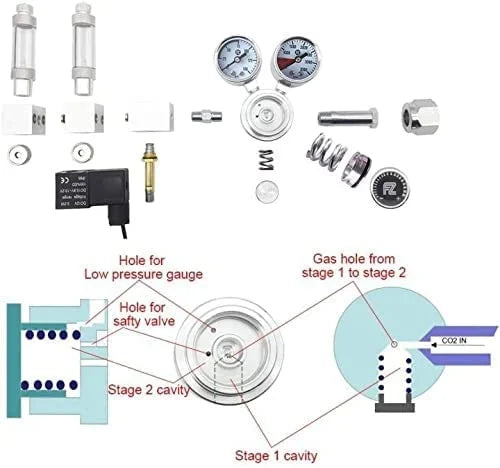

Dual stage structure with adjustable output pressure and safety valve

• Dual stage design, stable output pressure, and eliminates "end of tank dump"

• Pressure knob is adjustable from 0-65 PSI depends on your needs

• Dual gauge indicates tank volume and working pressure

• Safety valve built in. When the pressure is exceeding 100 PSI, the valve will automatically release the pressure

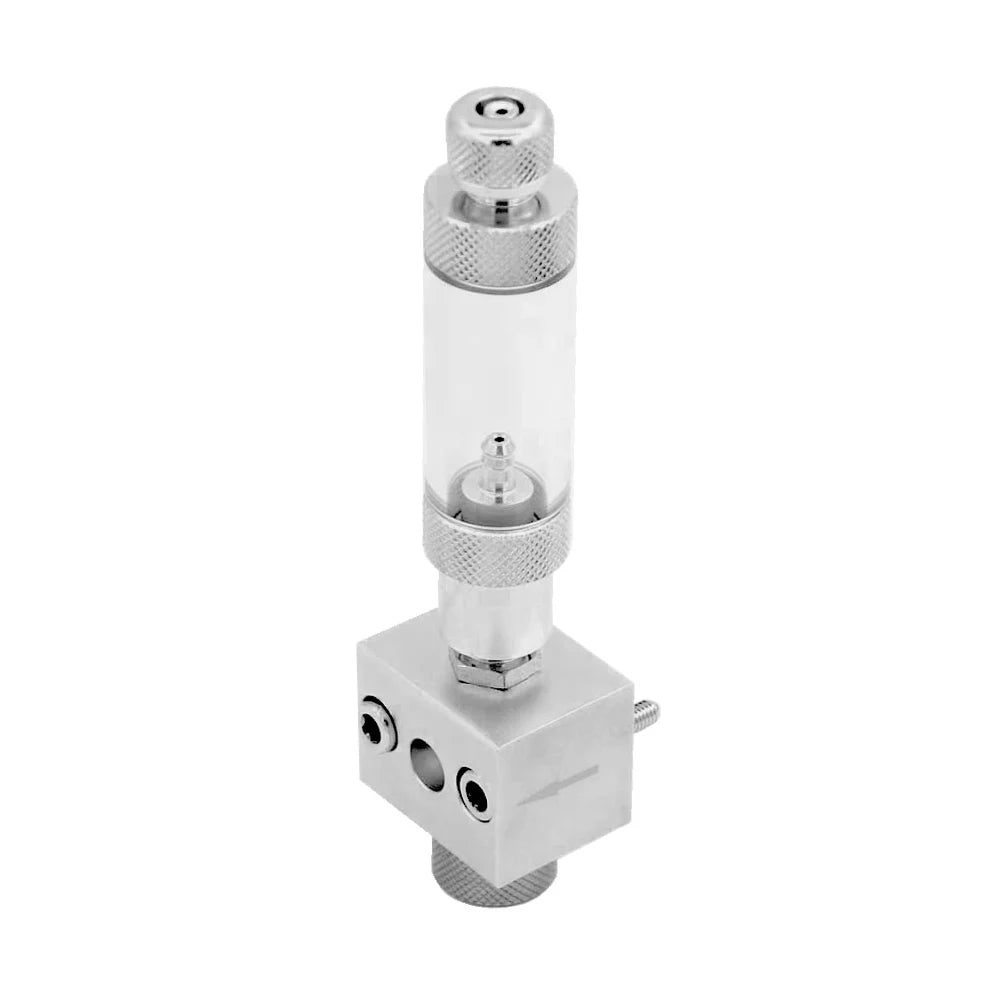

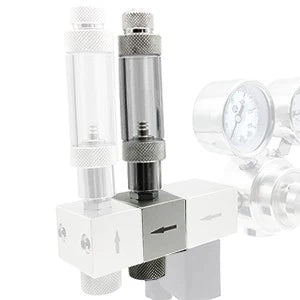

Expandable manifold blocks- each comes with integrated high precision needle valve and bubble counter

• With easy installation you can add or remove additional blocks as needed

• High precision integrated needle valve. Flowrate can be adjusted to as low as 0.3bps

• Bubble counter has check valve built in to prevent water from backflowing into the regulator

• Fits standard 4/6 mm (3/16" inner diameter) CO2 proof tubing

*Fill the bubble counter with fresh water only. DON'T use oil or salty water*

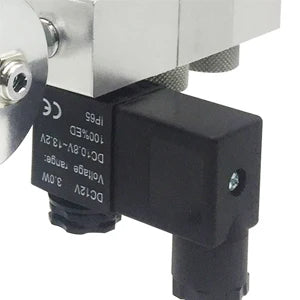

DC 12V solenoid valve, high Performance, cool operating temperature

• This solenoid is designed to work with an automatic timer

• DC 12V solenoid is safe and is much more stable than the AC solenoid

• Low power consumption: 2.5 watts only. keeps the solenoid cool to the touch during operation

• Re-designed solenoid opens and closes smoothly. No more overheating and buzzing sound

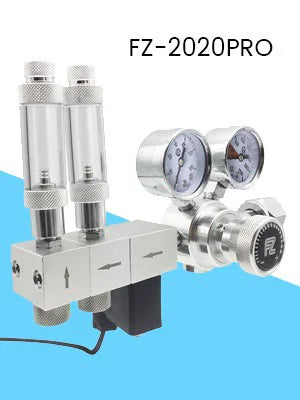

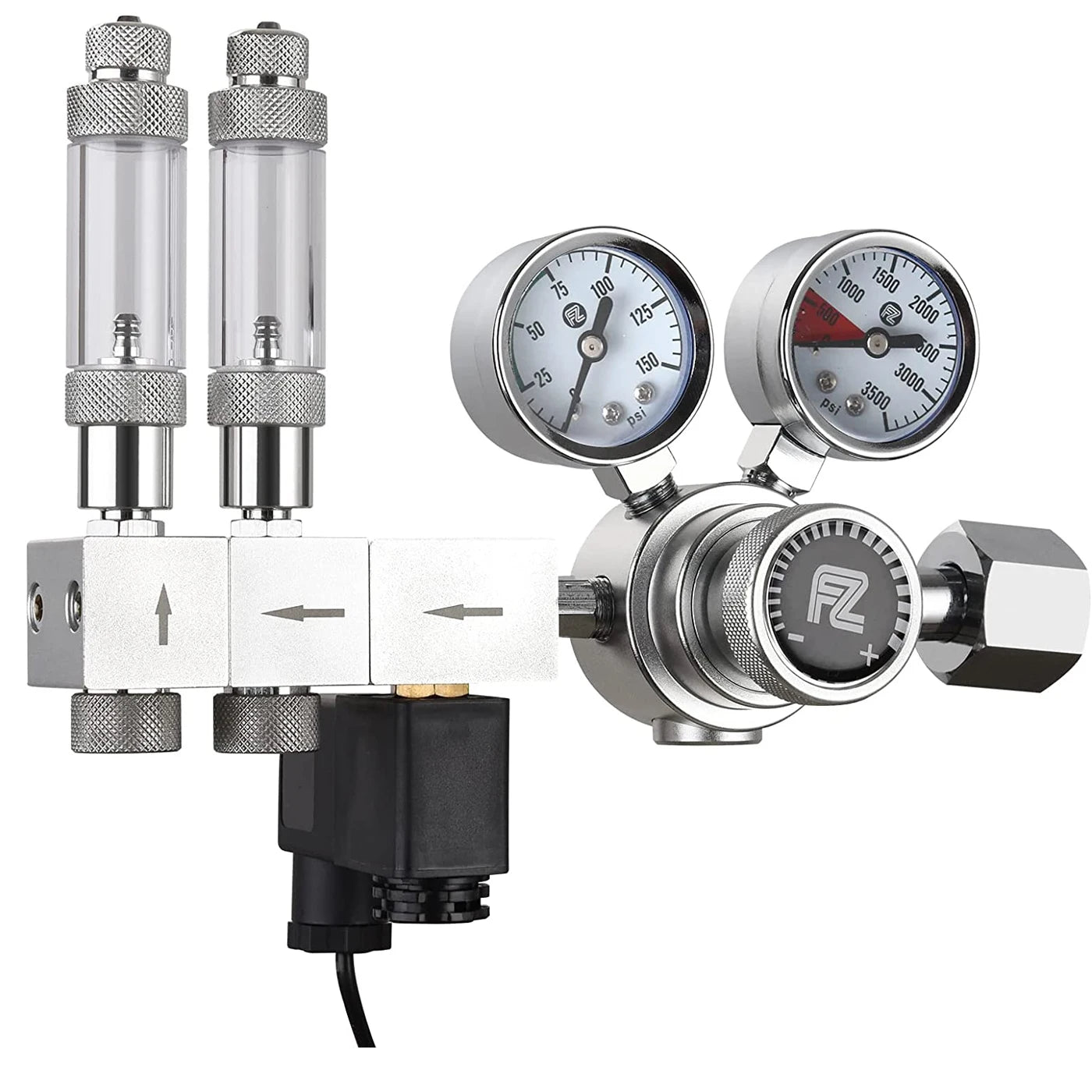

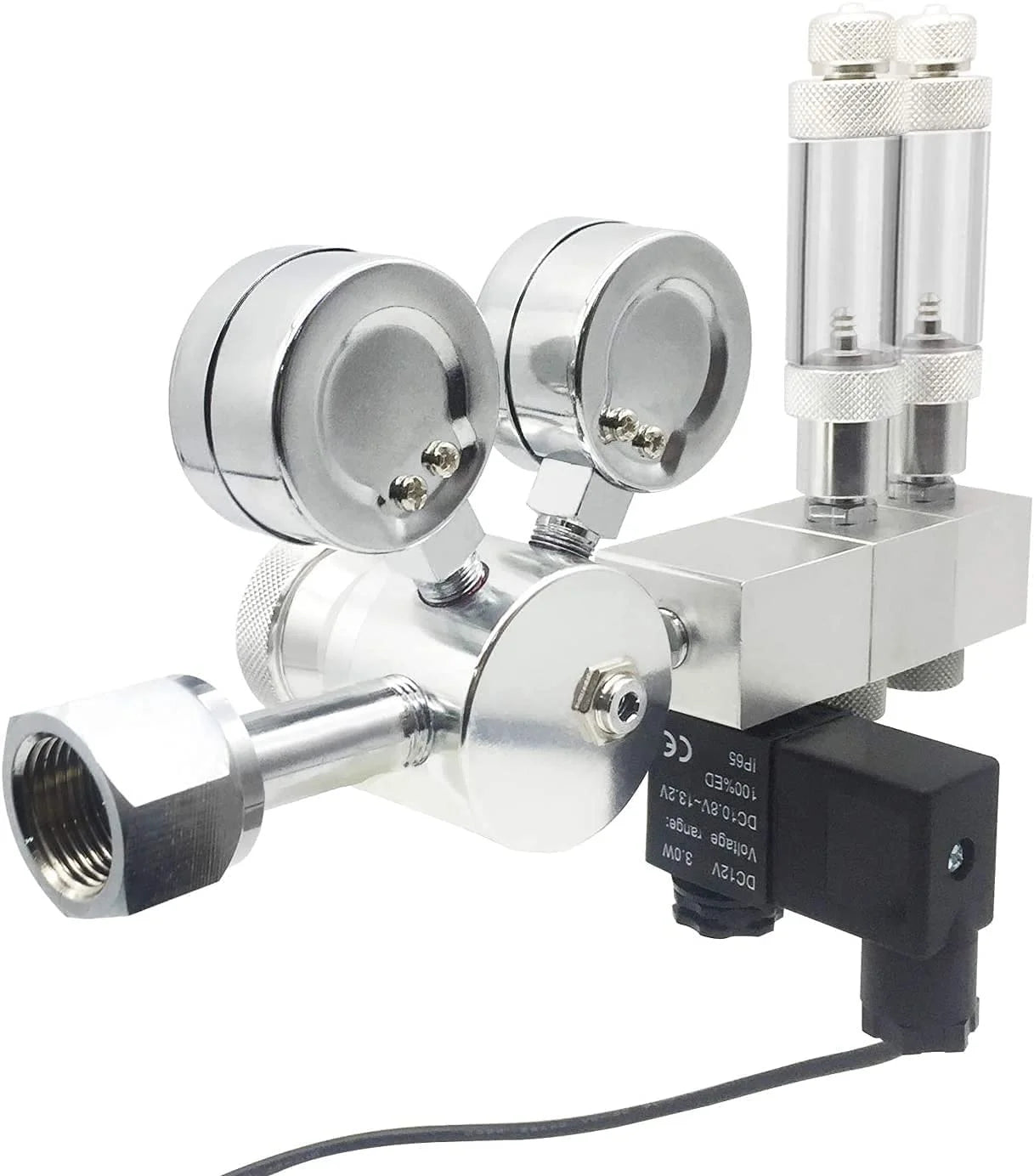

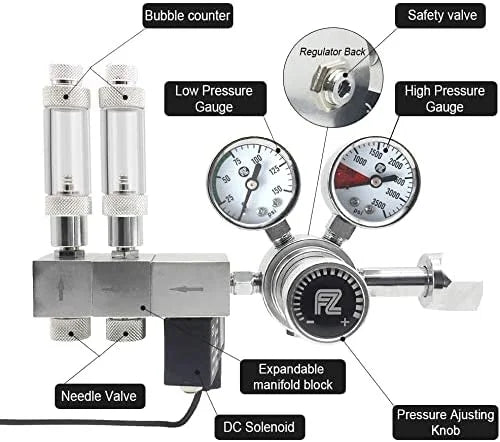

The PRO Series Dual Stage Regulator

• Safe 12V DC Integrated Solenoid Valve

• Adjustable working pressure up to 65 PSI

• Made of solid metal material

• High precision needle valve

• Bubble counter with built-in check valve

• Expandable manifold block

• Easy to install – installation tools are included

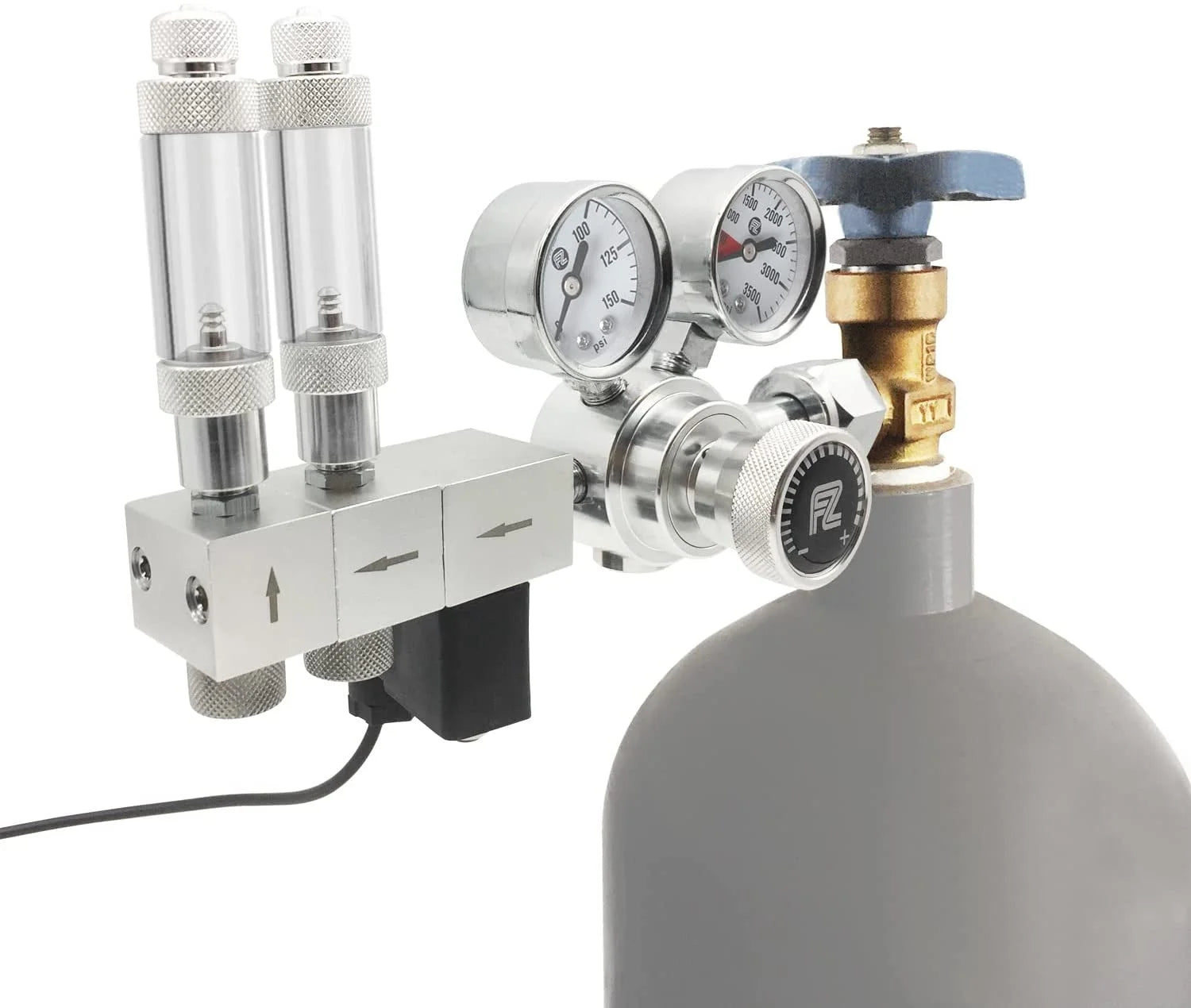

• North American CGA320 fitting only (not compatible with paintball tanks)

• 1 extra manifold is included (1 is already attached on the regulator). Additional manifold can be purchased

• Take 3-5mins to release the gas trapped inside the regulator when the solenoid is powered off

• While the regulator is powered off, the low-pressure gauge may not show 0 because gas is still trapped inside the regulator. This is normal

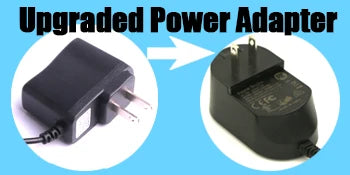

Upgraded high quality power adapter

We have listened to customer feedback and upgraded the power to be customized high quality version.

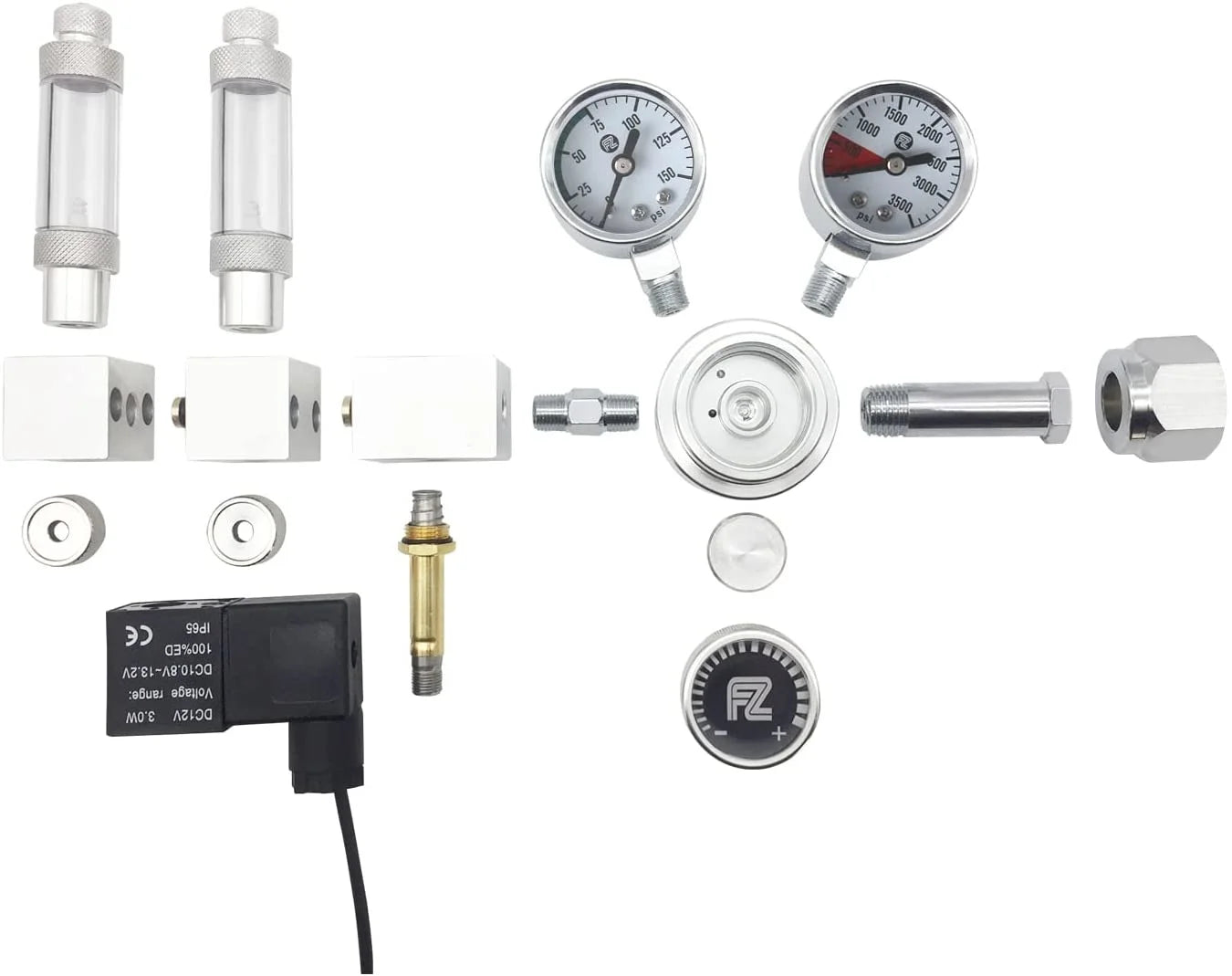

What's in package?

• Regulator x1

• manifold block x2 (installed)

• Bubble counter x2

• Allen key x1
